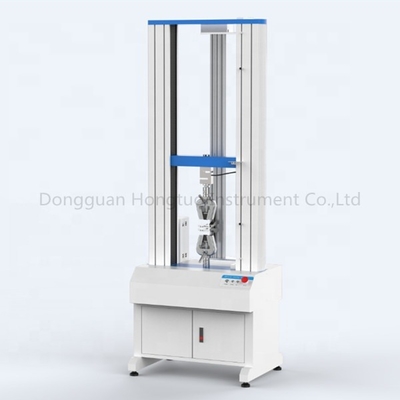

Double Column Computer Controlling High Quality Universal Testing Machine WDW-10D Universal Tensile Strength Machine Price, Fabric Tensile Strength Tester

1 Set
MOQ
$3,261.00(>=1 Sets)
価格
Double Column Computer Controlling High Quality Universal Testing Machine WDW-10D Universal Tensile Strength Machine Price, Fabric Tensile Strength Tester
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Warranty: 1 YEAR
Customized support: OEM
Model Number: WDW-10D
Power: Electronic
Usage: Double Column Computer Controlling Universal Testing Machine
Power supply: 220V.AC/ 50HZ; 110V.AC/60HZ
Max.Load KN: 10
Max.Load KG: 1000 KG
Unit switching: G,Kg,lb,N,KN
Test machine level: 0.5 class
Force accuracy: Within ±0.5%
Testing Before Delivery: Yes
After-sale Customer Service: Yes
基本情報
Model Number: WDW-10D
お支払配送条件
Packaging Details: Standard Exporting Wooden Package
Supply Ability: 300 Set/Sets per Month
製品の説明
WDW-10D High Quality Universal Tensile Strength Machine Price, Fabric Tensile Strength Tester

Introduction

This series of computer-controlled testing machine is designed and manufactured by Hongtuo Instruments. It adopts the current international mainstream speed control technology, and the main parts are made of imported professional brand companies; this series has long-term high reliability and stability. With precision, smooth operation and long life. This series is mainly used for material testing with load below 50kN. The functional application covers the testing of most products. It is the perfect testing instrument for mechanical testing by factories, scientific research units and quality inspection organizations. It has a wider and more accurate loading speed and force range, and has higher accuracy and sensitivity for measurement and control of load, deformation and displacement. It has stress-strain, force-displacement, power-time, intensity-time and other modes. Can find the maximum force value, tensile strength, flexural strength, compressive strength, elastic modulus, elongation at break, yield strength and other parameters, suitable for testing and analysis of tensile, compression, peeling, tearing, shearing, etc. The testing machine adopts high-speed DSP platform, which has high integration, powerful control, data processing capability and high reliability, which is unmatched by other processor test machines; all-digital adaptive PID algorithm,the closed-loop(force,deformation,displacement) control system,can realize full digital closed-loop control of force and displacement, and can automatically switch between control loops, and realizes smooth transition without impact when switching between modes.

Application industry:
Rubber and plastics; metrological quality inspection; commodity inspection and arbitration; technical supervision department; colleges and universities; scientific research laboratory; basic materials laboratory; metallurgical steel; machinery manufacturing; electronic appliances; automobile production; textile chemical fiber; wire and cable; packaging materials and food; Instrumentation; medical equipment; petrochemical; civil nuclear energy; aerospace; ceramic materials; magnetic materials industry; energy batteries; basic materials;

Application products: Plastic Film Fiber and thin wire Adhesive Foam material Tape Elastomer Connector Biomaterials
Wood and paper products Metal foil Metallic line Below medium strength metal Oil bearing Ceramic Part Fastener Composite material

According to the standards: ASTM, ISO, DIN, GB and other international standards.
Specification
Brand
HongTuo
Model
WDW-D
-05
-1
-2
-5
-10
-20
-30
-50
Capacity
KN
0.5
1
2
5
10
20
30
50
KG
50
100
200
500
1000
2000
3000
5000
lb
Unit switching
G、Kg、lb、N、KN
Displacement unit switching
Inch cm mm
Test machine level
0.5 class
Effective force range
0.2％～100％FS
Force accuracy
Within ±0.5%
Force decomposition
1/300 000
Force Power magnification
Full automatic shift switching
Displacement resolution
0.005mm
Displacement accuracy
Within ±0.5%
Deformation measurement range
0.2%～100%FS
Deformation indication accuracy
Within ±0.5%
Large deformation measurement range
(10～1000)mm
Large deformation resolution
0.05mm
Large deformation indication error limit
Within ±0.5%
Maximum test speed
500mm/min；optional maximum 1000mm/min
Minimum test speed
0.01mm/min
Speed accuracy
Within ±0.5%
Beam travel
Measuring height
standard
No grip testing stroke:330mm；With grip testing stroke:800mm
optional
/
/
Effective width
standard
420mm
optional
650mm
Fixture configuration
One set of tensile grip；can choose other grips
Returning method
Manual or automatic selection, automatically return after the test ends or manually return to the initial position
Stop method
1.Maximum break value automatically stop  2.Upper and lower limit safety setting stop
Safety devices
1.Mechanical limit switch protection  2.Emergency stop switch emergency brake
Overload protection
Over 10% of maximum load, automatic machine protection
Accessories
1 power cord; 1 test software program CD; 1 data cable; 1 manual; 1 certificate
Optional accessories
Anti-splash device (protective door); computer; printer; small deformation metal extensometer, large deformation displacement
tracker, T-type workbench;
Power supply
220V.AC/ 50HZ; 110V.AC/60HZ
Main host size/ weight
Length*Width*Height:750mm*500mm*1650mm / around 165KG
Packing size / weight
Length*Width*Height:850mm*600mm*1800mm / around 203KG
Features

(1)This machine is suitable for a wide range of applications (2)Powerful function, meet most of the mechanical properties test (3)Easy to operate, easy for anyone to operate (4)World-class AC servo motor and server for maintenance-free maintenance (5)Precision preloaded ball screw (6)Smooth operation, high reliability, sturdy and durable (7)Accurate measurement,certified by a third-party testing agency (8)High speed, low vibration, low noise servo motor drive (9)Multilingual application function, adapt to different countries’ using (10)Test mode function such as tensile, flexural, compressive, flexural, adhesive, tear, peel, elongation, etc.  (11)Has a variety of curve modes such as stress-strain,force-displacement, force-time, intensity-time (12)Automatic calculation of maximum force, minimum force, average force, maximum deformation, elongation, strength, etc. (13)Flexible capabilities of graph, data sheet, report viewing and printing. (14)Automatic homing function that automatically returns to the test start after the test is completed (15)With mechanical travel switch; emergency stop switch; over current, over voltage, under current, under voltage, leakage overload; software overload limit protection; breakpoint shutdown protection and other multiple protection devices (16)Optional: small deformation metal extensometer, large deformation displacement tracker



Details Images
Product Packaging
Company Profile
We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
Certifications
FAQ
1.Quality Insurance We guarantee this instrument for 1 year and life-long maintenance. We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons: (1) Wrong operation; (2) Fixed or refitted personally; (3) The machine itself is not the reason caused breakdown; (4)Applying the machine under the serious conditions.such as high temperature,moist, corrosive gas,or vibration. (5)Move or transportation as soon as installed. (6)Consumables and easy-loss components. (7)Natural disaster 2.After-sales Service a.If errors occur,please refer to the troubleshooting tips of the instruction manual. b.Please contact with our after-sales service department or distributor in time if can’t clear fault. c.DahoMeter after-sales hot line 400 830 0646 3.Are we manufacturer made copy product or original product? We are the original manufacturer. 4.Why choose us? We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service. a.We have been specialized in this field since 2002. b.Professional researching and technology team. c.Customer service team. 5.Can you offer quality certification? Yes.We can offer quality certification issued by our quality control department with free of charge.or issued by third-party international inspection organizations with extra charge. 6.Can you do the calibration and testing before handover the goods? Yes.We do testing and calibration for every product before delivery.
