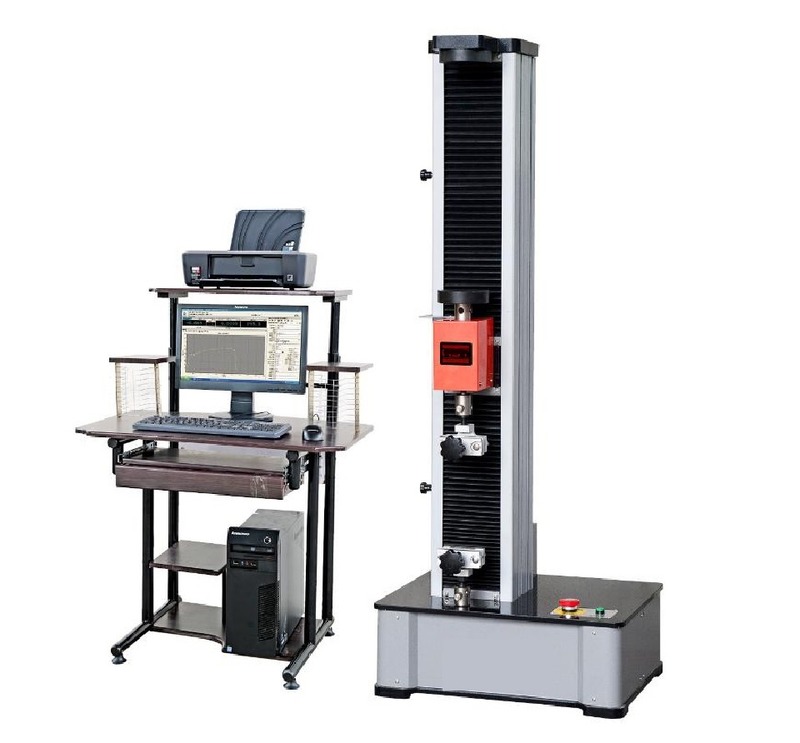

0-1500N Digital T200 Surgical Mask Medical Special Tensile Testing Machine

1 Set
MOQ
$3,000.00(1 - 2 Sets) $2,900.00(>=3 Sets)
価格
0-1500N Digital T200 Surgical Mask Medical Special Tensile Testing Machine
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Warranty: 1 YEAR
Customized support: OEM, ODM
Model Number: T200
Power: Electronic
Test force range: 0~500N (0~1500N optional ), 1400% elongation
Test accuracy: Within ±0.5% of the displayed value (grade 0.5)
Test speed: 1-500mm/min (infinitely variable speeds)
Displacement: Within ±0.5% of the displayed value
Test width range: 30mm (50mm can be customized)
Travel distance range: 750mm
Maximum test force: 3000N
Test force indication error: ± 1%
Maximum stroke: 1000 mm
Beam moving speed: 1-500mm / min
基本情報
Model Number: T200
お支払配送条件
Packaging Details: Packed by solid wooden case
製品の説明
Product Description
Hot Sale Digital Medical Surgical Mask Special Tensile Testing Machine T200 is applicable for tensile,compression and bending tests of materials with relatively small test force, such as rubber, plastic, textile, waterproofing material, cable, network wire, metal wire, metal rod, metal plate and others. With attaching tools, it can also do compression and bending tests.

Hot Sale Digital Medical Surgical Mask Special Tensile Testing Machine T200 Test Standards:
GB/T 3917.2
Textiles-Tear properties of fabrics-Part 2 Determination of tear force of pants shaped test specimens (single slit)
GB/T 3917.3
Textiles-Tear properties of fabrics-Part 3 Determination of tear force of trapezoid-shaped test specimens
GB/T3923.1
Textiles-Tensile properties of fabrics-Part 1 Determination of breaking force and elongation at breaking force- Strip method

  • Features:

1. Flexible and various interfaces and control methods, which can be used for multiple tests such as stretching, peeling, heat sealing, tearing, puncture, compression, bending, shearing, etc., setting of multiple parameters such as speed, thickness, and pinch 2. High measurement accuracy, the test measurement accuracy can reach 0.5 grade 3. The whole process is controlled by a computer, and the test is displayed online after the test. It can automatically perform data storage, data analysis and comparison functions.

High Accuracy
1. The full digital control system cooperates with imported AC servo system and motor to control the zero displacement 2. High-precision ball screw loading, stable loading, long testing machine life, long-term stability and energy saving 3. Load / deformation measurement: With multiple sub-channels, it supports extended measurement of multiple sensors
Product Paramenters
Product Name
Digital Medical Surgical Mask Special Tensile Testing Machine T200
Brand
Qinsun
Model
T200
Certificate
CE, ISO
Efficiency Testing
10%--99.999%
Power
220V, 50Hz, 1KW
Test force range
0~500N (0~1500N optional ), 1400% elongation
Test accuracy
Within ±0.5% of the displayed value (grade 0.5)
Test speed
1-500mm/min (infinitely variable speeds)
Displacement
Within ±0.5% of the displayed value
Test width range
30mm (50mm can be customized)
Travel distance range
750mm
Standards
ASTM D 434, D751, D885, D1683, D2256, D2261, D2724, D2731, D3787, D4034, D4964, D5034, D5035, D5587, D5733, D5735,
ISO13934-1,13934-2,13935-1,13935-2,13936-1,13936-2,13936-3,13937-2,13937-3,13937-4,1421, 2411, 2062, 4674-1,5082, 9073.3, 9073.4,
9073.18, BS 2543, 2576, 3320, 3424, 4303, M&S P11, P12, P13, P14, JIS L1096, ASTM D 434, D751, D885, D1683, D2256, D2261, D2724,
D2731, D3787, D4034, D4964, D5034, D5035, D5587, D5733, D5735
Details Images
Product Usage
Digital Medical Surgical Mask Special Tensile Testing Machine T200 can used for a variety of textiles and automotive interior materials tensile strength, tensile break elongation (or elongation rate) test. It can also be used for zipper, leather strength test.
Related Products
Packing&Shipping
Company Introduction
Qinsun Instruments Co., LTD specialize in the research and development of high quality lab instrument for textile testing industry. Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.
FAQ
Q1. Is your company a trading company or factory?
A1: Factory + trade (integration), has 6 years focusing on test instruments field, 6 years
exporting experience.

Q2. After an order is placed, when to deliver?
A2: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q3. What’s the payment term?
A3:T/T, L/C and other payment terms could be negotiated.

Q4. What's the warranty and after-sales service?
A4: 12 months warranty. Feedback to you within 24h and help you to repair your problem controller freely, even it's not from our factory.

Q5. What the standards do you adopt?
A5: We have been adopting the world standards and regulation such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, and CSA.
Q6. How do you pack and ship instruments? A6: Usually covered with foam and film, and then packaged in standard export cartons/plywood boxes.Sea / Air / International Express can be selected according to customer needs.

Q7. What's the cooperation Process?
A7: Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.

Why Choose Us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
