Introduction:
ZME-1001 Computer Servo-type Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 10ton.
Corresponding standard :
<<GB/T16491-1996 electronic universal testing machine>>
Technical parameter:
| Model | ZME-1001 |
| Maximum load | 5ton, 10ton option |
| Accurate grade | 1 grade / 0.5 grade |
| Effective measuring range | 0.2%~100% (1 grade)/0.4%~100% (0.5 grade) |
| Measuring accuracy | Display the value ±1%/Display the value±0.5% |
| Tester resolution | Max load 1/200000 |
| Load sensor | Basic configuration: sensor (max load): one |
| Extended configuration: can add more sensors | |
| Effective testing width | 400mm (can be customized ) |
| Effective tensile space | 400, 500, 600mm ( can be customized ) |
| Range of testing speed | 0.001~500mm/min |
Accuracy of displacement measurement | Tolerance: ±0.5% / tolerance: ±0.2% |
| Deformation of measured system | Mix span: 10mm, Max range of deformation: 800mm |
| Accuracy of measured deformation | Tolerance: ±0.5% ( according to customized ) |
| Safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow two speeds to control, can jog |
| Back to function of testing platform | Manual or automatic operation, after the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%, automatic protection |
| Fixture | A set of tensile fixture |
| Machine size | 1040×590×2000mm ( length*width*height ) |
| Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply | 220V, 50HZ |
| Power | 0.75KW ( depending on different motor ) |
| Weight | (about) 500 Kg |
Main function:
Mainly applied to test the force of metallic and non-metallic materials in the high or low temperature environment, the force such as tension, compression, bending, shear, peel, tear or two-points extensions (need to add extensometer) and others., the material such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire.
Applicable industry:
It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.

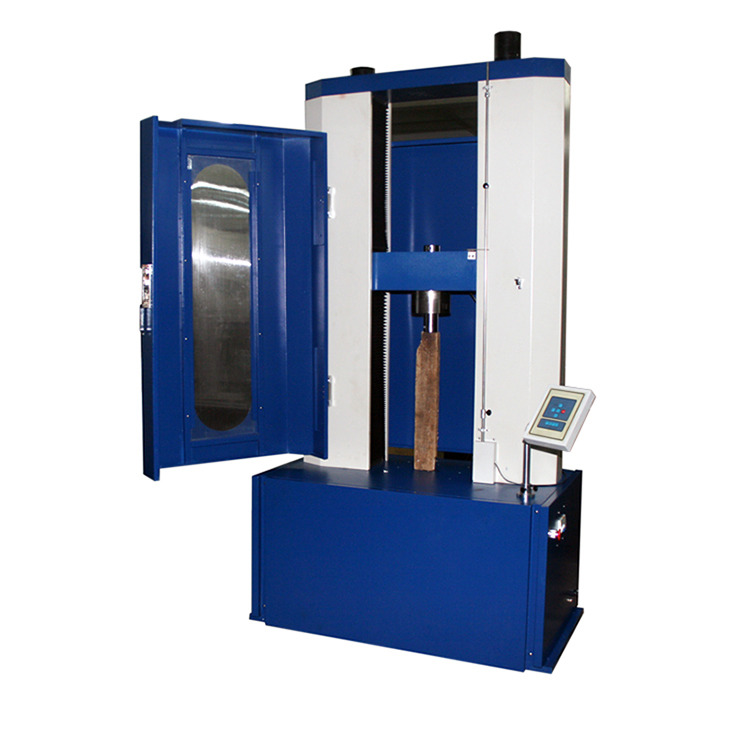

Tension Testing Machine
Tension Testing Machine
Tension Testing Machine
1. Q: What is your warranty ?
- 12 months product warranty, but lifetime for services.Free Non-consumable components will be provided if any performance failure occurs within 12 months caused by non-human damage.
2. Q: How-to vedio provided ?
- Yes, if required, our engineers will record a specialize how-to video for you.
3. Q: 1.Are your company a trading one or a factory?
- Yes, we are a manufactured factory+ trade (integration),18 years focusing on test instruments field,9 years exporting experience.,warmly welcome to visit our plant(factory), we also support OEM and ODM.
4. Q: After an order is placed, when to deliver?
- Generally about 25 days, If we have inventory, we can arrange shipment within 3 days.
5. Q: What about the warranty with after - sales services?
- 12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory.
What you need to do is to send us the controller.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered
while using our product, handles guest problems and complaints in a professional and timely.
6. Q: What about the services and product' quality?
- Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate.
Engineers would be go abroad to training, repair and others help you need.
7. Q:what about the packing of equipment?
- Covered with air bubble film before put the machine into the stanard exporting wooden case,
which not only has good shock absorption, impact resistance, heat sso has the advantages of nontoxic,
odorless, moisture corrosion, good transparency etc.
