Hydrostatic Pressure Testers For Gas Cylinder China Factory Directly Supply 30 Mpa Hydrostatic Pressure Testing Machine---For Testing Gas Cylnder

Shineeast SY-02 Model

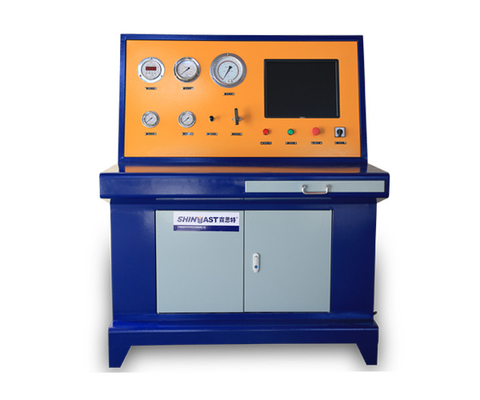

Hydrostatic Pressure Test Machine for Gas Cylinder

The machine is mainly used for cylinder pressure test and achievement of gas cylinder volume residual deformation rate.

Main technical parameter:

Shineeast can manufacture hydrostatic test machines with many specifications, with different testing pressure ranges, the max. testing pressure is up to 70mpa.

For more information about the test machine, please contact Shineeast overseas department: 86-15552899768.

Working principle: put the cylinder into a water jacket and boost the cylinder by high pressure pump. It will automatically dwell at set pressure and do pressure test on the cylinder. At the same time, the cylinder valume expands under test pressure and squeezed some water from water jacket into the measuring cup, and it is test cylinder volume deformation. The water is transferred to PC by water collection system, the elastic deformation disappears after cylinder relief of pressure, then the water flows back from measuring cup to water jacket.However, the remainning water in the measuring cup is still more than that before boosting the cylinder. The extra water volume is the test gas cylinder volume residual deformation. While the gas cylinder volume residual deformation rate is the ratio of the test gas cylinder volume residual deformation and all deformation.
