特徴

仕様

Features: Pressure Resistance, Burst Test

Customized support: OEM

Model Number: MPT

Power: Hydraulic

Project Requirements: Performance Indicators

Subject: PVC Hose

Test Medium: Water

Test Pressure: 1~8MPa

Pressure Test Accuracy: ±0.5%F.S

Pressure Control Accuracy: ±2%F.S

Boost Rate: 10kpa/S

Warranty: One Year

Brand: ODMT

基本情報

Model Number: MPT

お支払配送条件

Packaging Details: Fumigation wooden cases, which are well sealed and strong enough for long-term trip

Supply Ability: 50 Set/Sets per Day

製品の説明

Product Description

Specification

Product Introduction

The main function:

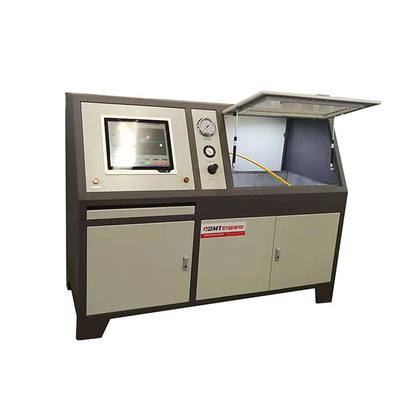

MPT series bursting pressure test bench can carry out water (oil) pressure test on various pipelines and containers. For different
test purposes, multi-step pressure test and burst test can be carried out on the tested parts by pressure setting.

Description of equipment actions and the functions implemented 1. Pressure burst test on cold PVC hose and composite hose;
2. Using a pneumatic booster system, the boost rate can be set
within the range as needed;
3. Using the pneumatic supercharger independently developed by our
company as the supercharging device, the boosting speed is fast and the pressure is stable;
4. Adopt PLC control, set and display the number of tests,
pressure, time, etc. through the touch screen, automatically stop the test and complete the task alarm buzzer when the
requirements are met;
5. The test bed is equipped with an emergency button, and the test
can be stopped immediately if there is an event.
6. Typical test procedure:

Constant speed boost-bursting
Constant speed boost-Holding pressure-bursting
Constant speed boost-Holding pressure-Pressure relief
Constant speed boost-Holding pressure-constant speed boost-Holding pressure-Until bursting
7. The operation interface is similar to the following figure:

Part of Machine

Company Profie

Certifications

Packing & Delivery

FAQ

1. Delivery Term: FOB Qingdao, by vessel
2. Delivery Time: 15-20 days
3. Payment Terms: T/T (100% to pay by T/T )
4. Installation / Operation / Service / Manual: In English
5. Warranty: One year from the date of completion of the commissioning.
6. Pre-shipment Inspection: Supplier should trial run whole line at supplier's factory before shipment.
