Introduction:

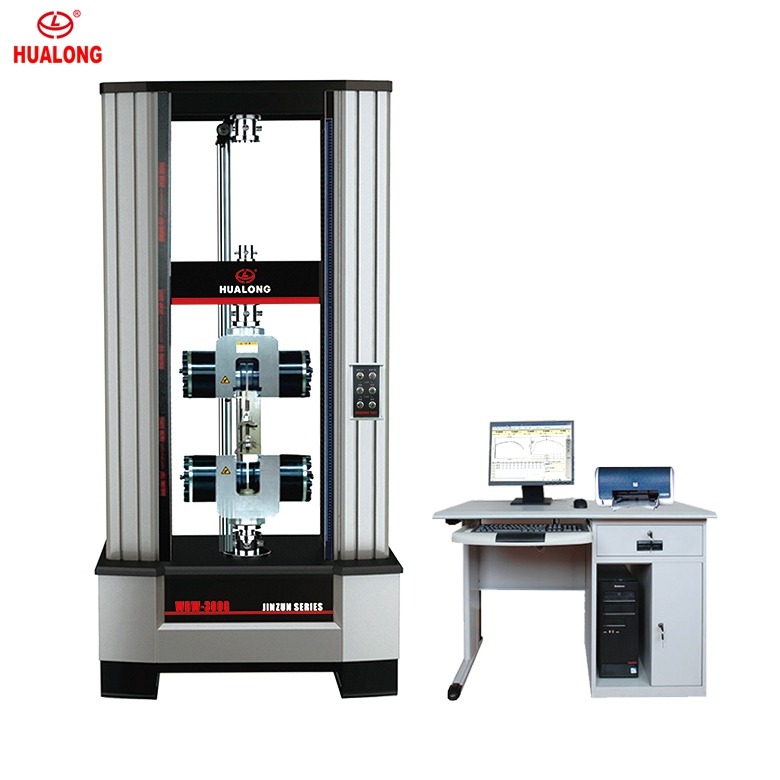

HUALONG WDW series single column electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
Technical Prameter:
Model | WDW-100C |
Load frame | |
Capacity | 100kN / 22,500 lbf |
Load Resolution | Capacity / 500, 000 (fully auto scaling of single measurement range) |
Test area width | 550mm / 22 inch |
Maximum Crosshead Travel | 1200 mm / 47 inch (excluding grips) |
Maximum tensile space | 900 mm / 35 inch |
Height | 2400 mm / 94 inch |
Width | 600 mm / 24 inch |
Length | 1100 mm / 43 inch |
Weight | 800 kg |
Noise level measured at maximum test speed | 58 dB(A) |
High and low Temperature Chamber |
| |
Temperature range | -40~150℃ or as your request | |
Inner chamber size | 400*350*600 or as your request | |
